Key Features

MM Input

  • Frequency response: RIAA or RIAA/IEC ±0 .2dB
  • Input sensitivity: 5mV in for 500mV out (at 1kHz)
  • Input impedance: 47KΩ
  • Input capacitance: 50-400pF selectable
  • THD at 1 kHz: <0.005%
  • Overload margin: 26dB
  • Signal to noise ratio: >101dB

MC Input

  • Frequency response: RIAA or RIAA/IEC ±0.25dB
  • Input sensitivity: 500μV in for 500mV out (at 1kHz)
  • Input impedance: 25Ω to 1,2KΩ selectable
  • Input capacitance: 470pF fixed
  • THD at 1 kHz: <0 .02%
  • Overload margin: 26dB
  • Signal to noise ratio: >90dB

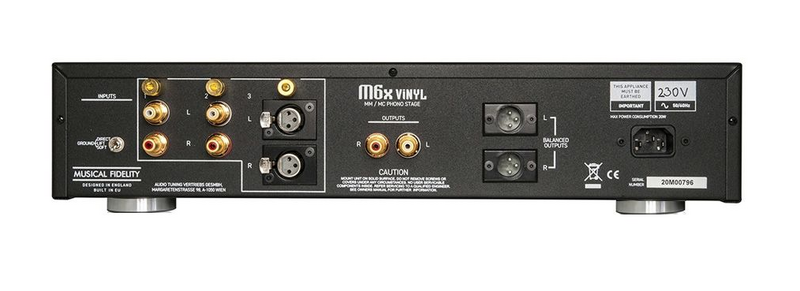

Outputs (RCA/XLR)

  • 1 pair RCA: left and right 500mV nom 10V max
  • 1 pair XLR (balanced): left and right 1V nom 20V max

(662)

SKU 662
Brand Musical Fidelity
Shipping Weight 16.0000kg
Shipping Width 0.200m
Shipping Height 0.500m
Shipping Length 0.550m
Shipping Cubic 0.055000000m3
